OC-FM Series
Ultimate See-through Display
Introduction

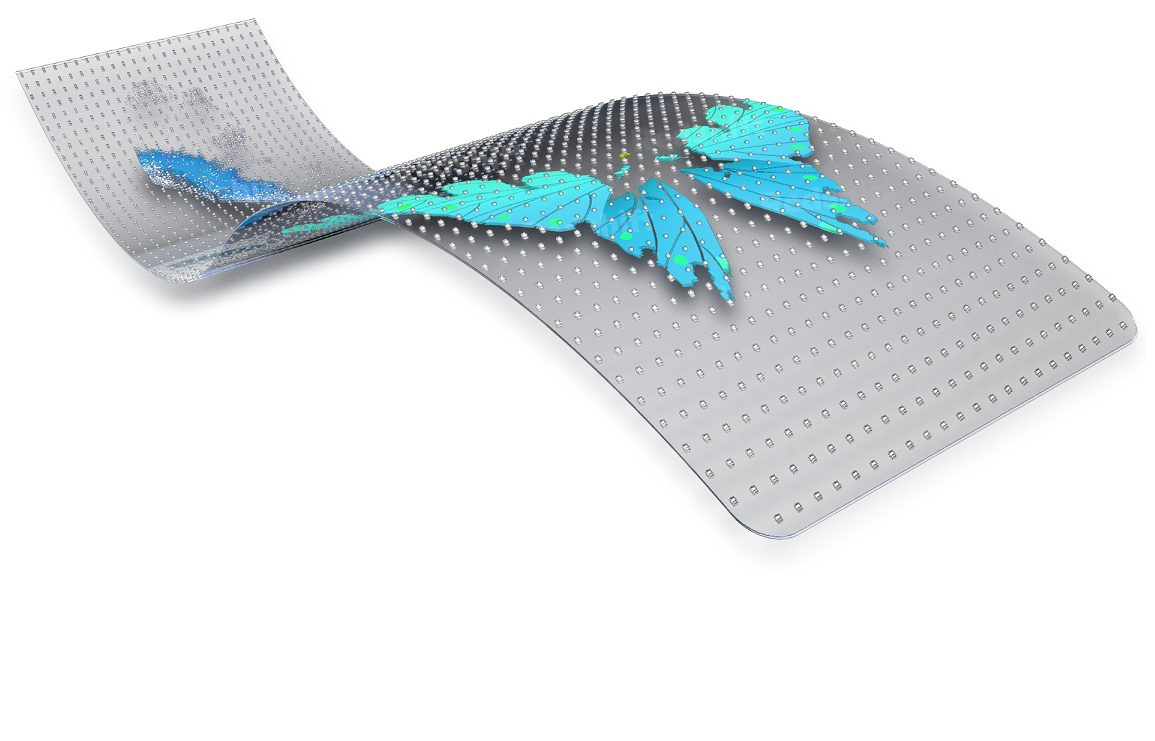

Featuring the latest display technology, the transparent film display offers frameless digital signage. With superb flexibility, it can provide see-though views and blend itself into glass completely.
Each film is self-adhesive and easy for installation. It can be customized to fit any size. Offering a wide range of colors, film transparent Led can display remarkable floating images with holographic effects.
Key Features
- High transparency to 92%: nano-level metal mesh distribution;
- Soft & flexible: bending curvature can reach 1200R, without influencing the light uniformity and visual effects;
- Ultra-thin & light: screen thickness ≤2.1mm, Screen weight ≤ 4.5kg/sqm;
- Freely cut:can be cut arbitrarily, seamless splicing, screen; the size and shape are flexibly matched to various safety install area carrier, such as triangle, square, round etc;
- Easy installation: a single diaphragm can be replaced without damaging the original structure of the building.
Applications
- Retail displays: Flexible transparent LED displays are perfect for creating unique and eye-catching retail displays. They can be used to showcase products in an innovative way, and can also be used as part of an interactive experience;
- Event displays: These displays can be used to create stunning visual effects at concerts, festivals, and other events. They can be used as part of a stage backdrop or as a standalone display;

- Corporate displays: Flexible transparent LED displays can be used in corporate settings to create unique and engaging displays. They can be used in boardrooms, lobbies, and other areas to showcase company information, products, and services;
- Hospitality displays: These displays can be used in hotels, restaurants, and other hospitality settings to create a visually stunning environment. They can be used as part of a larger design concept, or as a standalone display;
- Automotive displays: Flexible transparent LED displays can be used in the automotive industry to create unique and innovative displays. They can be used in showrooms to showcase new models, or as part of a car’s interior design.
Specifications
Items | Type | Type | Type |
Model | OC-FM-P6 | OC-FM-P8 | OC-FM-P10 |
Pixel pitch | 6mm | 8mm | 10mm |
Led configuration | 1R1G1B &IC driver build-in | 1R1G1B &IC driver build-in | 1R1G1B &IC driver build-in |
Led type | SMD2121 | SMD2121 | SMD2121 |
Transparency | 85% | 90% | 90% |
Weight | 4.5KG/sq.m | 4.5KG/sq.m | 4.5KG/sq.m |
Thickness | less than 2.1mm | less than 2.1mm | less than 2.1mm |
Brightness | 100-2500 nits | 100-2500 nits | 100-2500 nits |
Maximum power consumption | 800W/sq.m | 800W/sq.m | 800W/sq.m |
Average power consumption | 100-400W/sq.m | 100-400W/sq.m | 100-400W/sq.m |
Viewing angle | 160° |160° | 160° |160° | 160° |160° |
Refresh rate | 1920Hz | 1920Hz | 1920Hz |
Gray scale | 10-14bit | 10-14bit | 10-14bit |
Driving method | static | static | static |
Working temperature | -30℃-50℃ | -30℃-50℃ | -30℃-50℃ |
Working humidity | 10%-90% | 10%-90% | 10%-90% |
Lifespan | 100000hrs | 100000hrs | 100000hrs |
Controlling system | Novastar | Novastar | Novastar |
