OC-CC Series
Round Form For Special Displays
Introduction
The round LED display that revolutionizes the world of digital signage. Unlike the conventional square displays, the round LED display offers a unique and captivating visual experience that will leave a lasting impression on your audience.
But it’s not just about the form – the OC-RD series also boasts an outstanding level of protection. Equipped with advanced waterproof and dustproof technology, it is perfect for use in harsh environments such as outdoor advertising, transportation hubs, and even sports venues.
The round LED display is also highly customizable, with a range of pixel pitches and resolutions to suit any application. And with seamless installation options, it can be mounted on walls, ceilings, and even as a standalone unit.
Key Features
- Energy saving : excellent IC driver and improved PCB design;
- High uniformity and contrast;
- Anti-UV module mask, anti-Oxidation module frame for protection from deformation;
- High brightness: 5500-6500nits;
- High refreshing rate: 3840Hz;
- Wide viewing angle: H:160°/ V:160°;
- Various options of pixel pitches: P3, P4.68, P5;
- Reliable protection: Front: IP65; back: IP54, so it is suitable for working in different outdoor environments;
- Wide operating temperature: -30°C to +55 °C;
- Working lifespan: more than 100000 hours;
- Control method: synchronous or asynchronous.
Applications
- Live events: The OC-CC series is perfect for live events, such as concerts, sports games, and festivals, providing an immersive and engaging experience for audiences;
- Advertising: The round shape of the display makes it an ideal platform for advertising, offering a unique and attention-grabbing way to promote products and services.
- Retail: The display is also well-suited for retail environments, allowing businesses to showcase products and promotions in a visually appealing way;
- Museums and galleries: The OC-CC series can be used to create immersive and interactive exhibits in museums and galleries, enhancing the visitor experience and bringing art and history to life.
Specifications
| No | Item | OC-CC-P3 | OC-CC-P4.68 | OC-CC-P5 |
| 1 | Led configuration | SMD1415 | SMD1921 | SMD2727 |
| 2 | Pixel pitch(mm) | 3 | 4.68 | 5 |
| 3 | Module size(mm) | 192×192 | 300×300 | 80×80 |
| 4 | Module resolution(WxH) | 64×64 | 64×64 | 16×16 |
| 5 | Module composition(WxH) | 10×10 | 2×2 | 10×10 |
| 6 | Cabinet resolution(WxH) | 640×640 | 128×128 | 160×160 |
| 7 | Cabinet dimension(LxWxH,mm) | 2204x2204x180 | 682x682x60 | 1920x1920x180 |
| 8 | Cabinet area(sq.m) | 2.9 | 0.28 | 2.01 |
| 9 | Weight/sq.m | 55 | 16KG/unit | 55 |
| 10 | Pixel density(pixels/panel) | 409 600 | 16 384 | 25 600 |
| 11 | IP level | Front: IP65/Back: IP54 | Front: IP65/Back: IP54 | |
| 12 | Brightness(nits) | 6000 | 5500 | 6000 |
| 13 | Color temperature(K) | 3200 – 9300 | 3200 – 9300 | 3200 – 9300 |
| 14 | Viewing angle(H/V) | 160/160 | 160/160 | 160/160 |
| 15 | Contrast ratio | 6000:1 | 6000:1 | 6000:1 |
| 16 | Maximum power consumption(W/sq.m) | 800 | 800 | 800 |
| 17 | Average power consumption(W/sq.m) | 100-400 | 100-400 | 100-400 |
| 18 | Input voltage | AC100~240V (50-60Hz) | AC100~240V (50-60Hz) | AC100~240V (50-60Hz) |
| 19 | Maintenance | Rear Access | Rear Access | Rear Access |
| 20 | Refreshing rate(Hz) | 3840 | 3840 | 3840 |
| 21 | Frame rate Processing (Hz) | 50 & 60 | 50 & 60 | 50 & 60 |
| 22 | Operating temperature (°C) | -30 ~ 55 | -30 ~ 55 | -30 ~ 55 |
| 23 | Storage temperature (°C) | -40 ~ 60 | -40 ~ 60 | -40 ~ 60 |
| 24 | Operating humidity (RH) | 10 – 90% | 10 – 90% | 10 – 90% |
| 25 | Storage humidity (RH) | 10 – 80% | 10 – 80% | 10 – 80% |
| 26 | Lifespan of the led | 100000hrs | 100000hrs | 100000hrs |

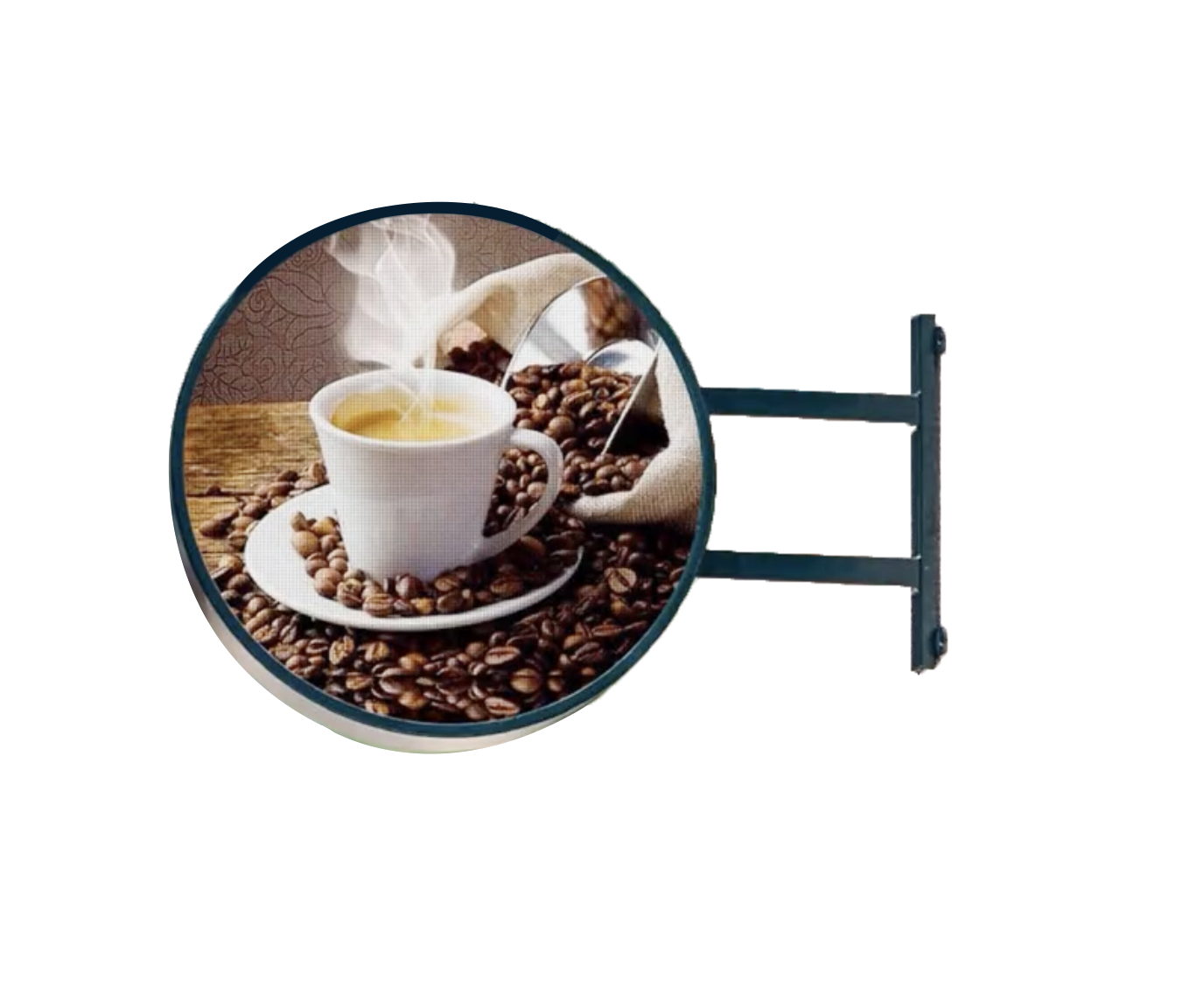

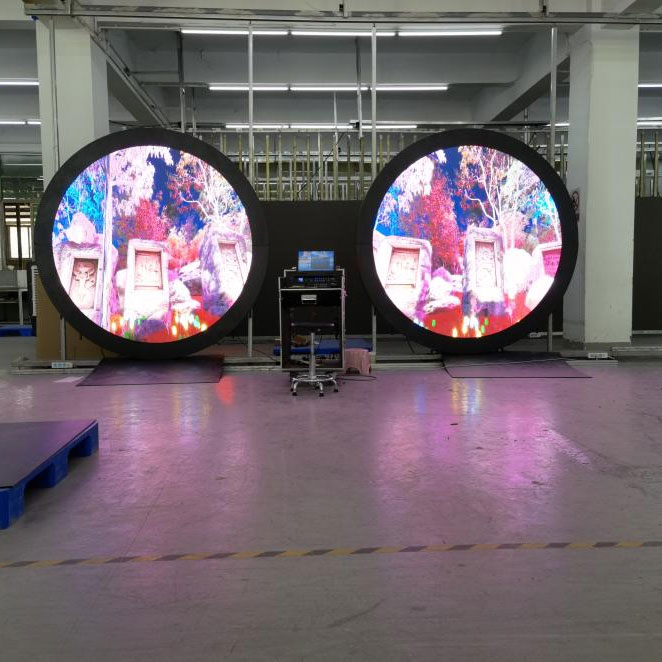

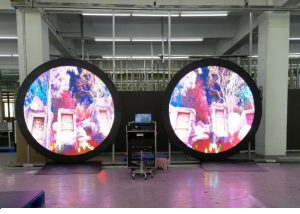

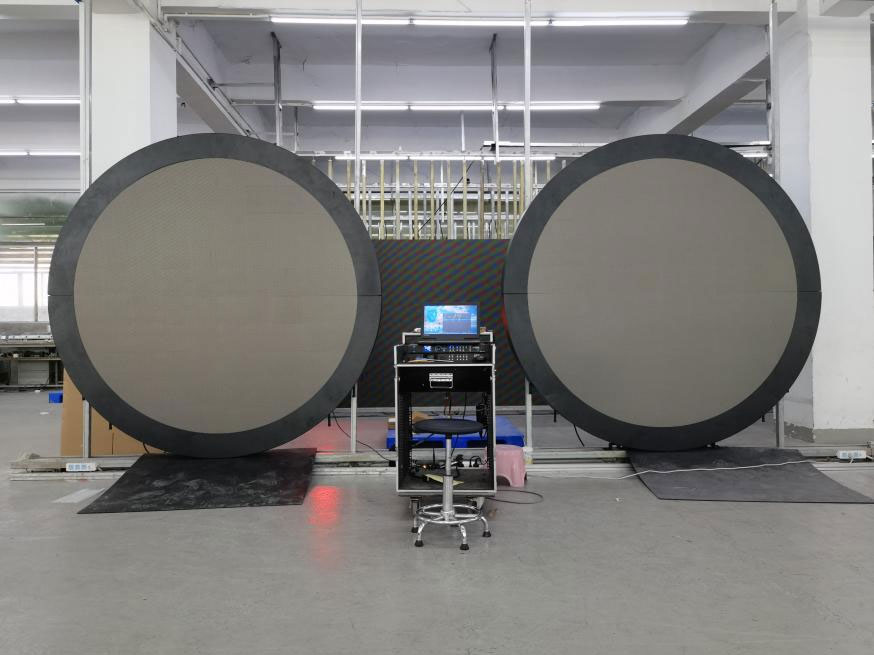

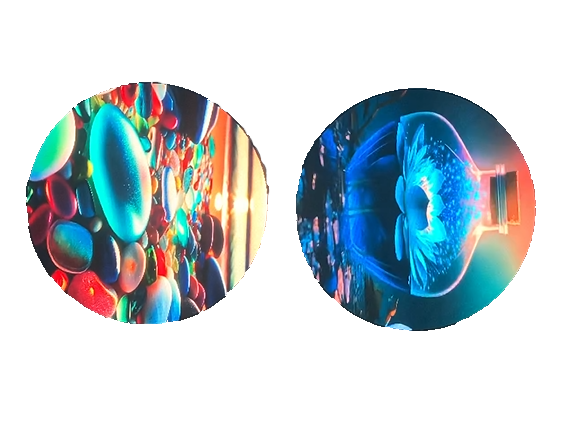

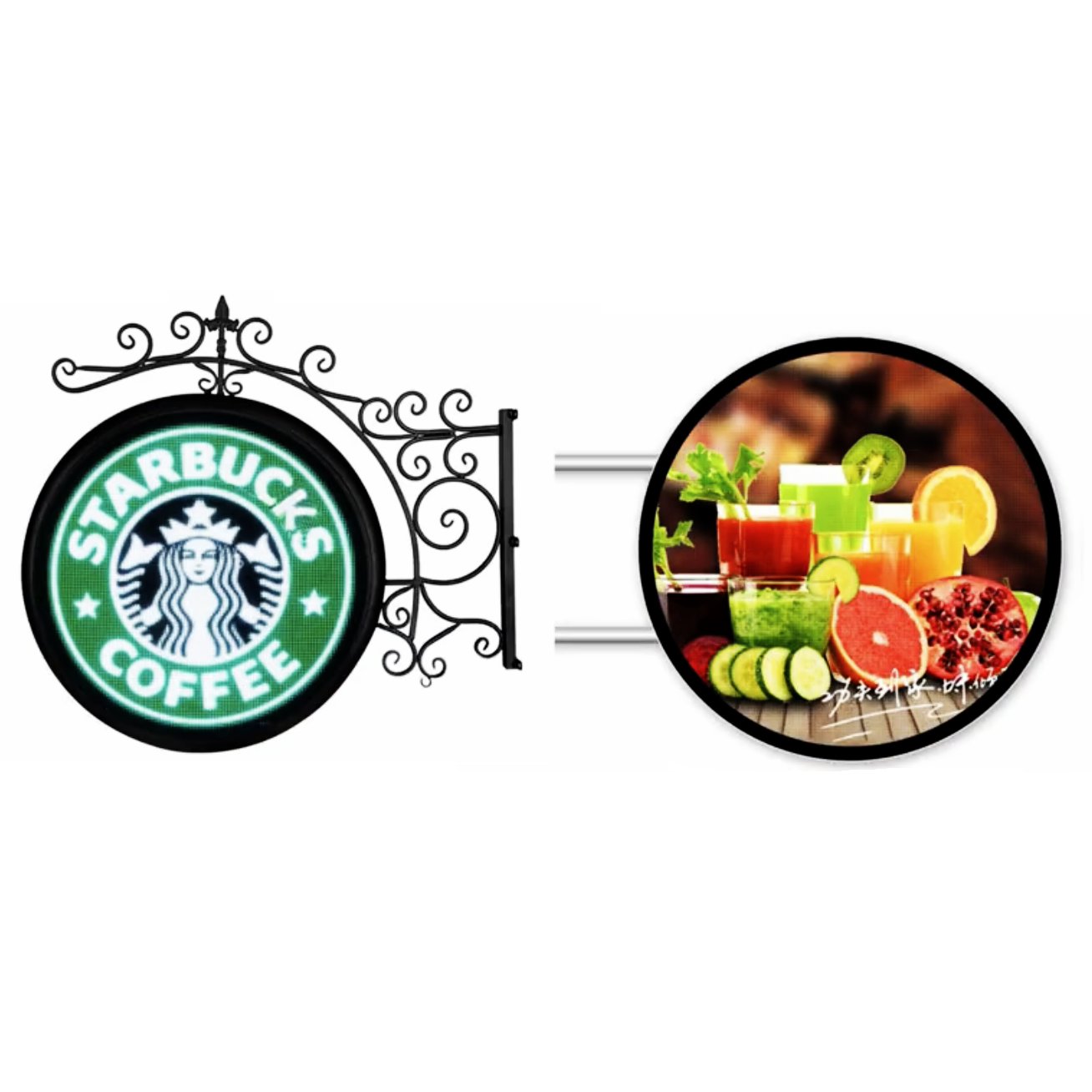

Product Images
