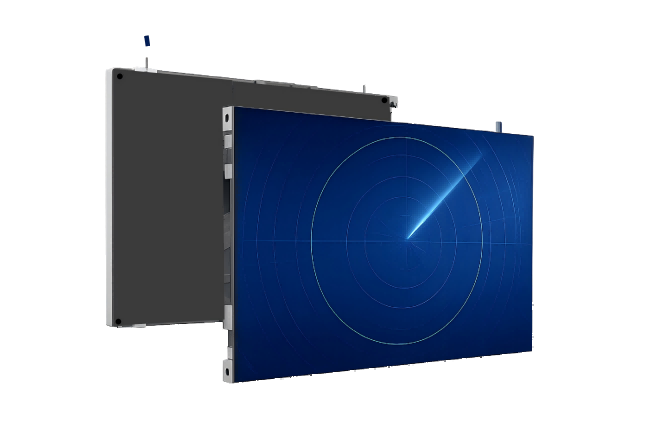

OC-CO Series
LED PANEL FOR CONTROL ROOM
Introduction
Introducing our latest innovation in LED display technology, the Fine Pixel LED Screen! Featuring state-of-the-art Chip-on-Board (COB) technology, this display is a game-changer in the world of digital signage. The revolutionary integrate system for professional and safe view 24/7 operations. The LED chip is driven by a constant current mode, which has the characteristics of uniform light emission and low power consumption.
With ultra-fine pixel pitch, the Fine Pixel LED Screen delivers stunning visual experiences with exceptional clarity and detail.
Key Features
- Low BTU Impact (Minimal Heat Emission):
Our LED panels engineered with fanless for low BTU output ensure minimal thermal emission, which contributes to maintaining the ambient temperature stable, especially in enclosed or sensitive environments such as control rooms, defense, energy plant or medical facilities. This characteristic reduces the need for high-performance HVAC systems, resulting in lower operational costs and greater comfort for personnel in long-duration operations.
- Low Power Consumption:
Utilizing high-efficiency LED technology, our panels deliver superior brightness and color performance while significantly reducing energy consumption. This translates to lower energy bills and aligns with sustainability goals, particularly in large-scale installations or 24/7 operational environments over secondary power supply, Moreover, lower power draw allows for simplified electrical infrastructure and backup systems.
- High Contrast and Visual Clarity:
Advanced LED displays offer **deep black levels and high dynamic contrast ratios**, essential for environments that demand precise visual distinction, such as **surveillance centers, military operations, traffic control, and medical visualization**. The clarity ensures that critical information is visible under a wide range of lighting conditions, minimizing misinterpretation or operator fatigue.
- Extended Lifespan:
With a typical operational life exceeding 100,000 hours, professional-grade LED panels provide a long-term visual solution with reduced replacement frequency. This longevity lowers total cost of ownership (TCO) and supports high-reliability applications in mission-critical scenarios.
- Easy Maintenance and Serviceability:

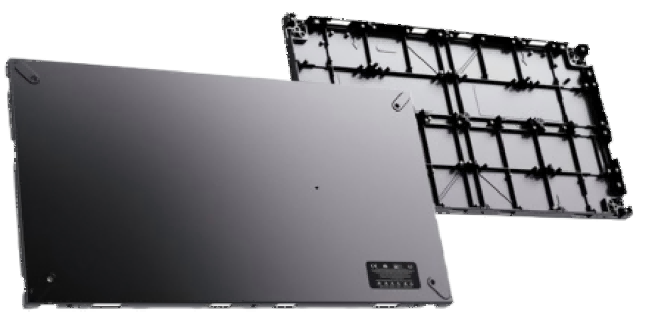

Designed with modular architecture and front-access maintenance features, these panels allow for rapid replacement of components and simplified servicing without the need for extensive technical intervention or downtime. Diagnostic tools and remote monitoring capabilities further enhance proactive maintenance strategies, minimizing disruption to operations. Ultra-slim design of <32mm with hard connections for fine adjust bracket. Strong magnetic pins for high resistente of impact and vibration
- Engineered for Extreme Environments:
LED panels built for rugged applications are resistant to dust, moisture, vibration, and temperature fluctuations, making them ideal for industrial plants, transportation hubs, outdoor command posts, or high-humidity areas. Some models are compliant with IP-rated protection standards, ensuring stable performance in challenging climatic or operational conditions.
- Low blue light and frequency over demand:
MLD panels are designed for extended viewing, preserving staff health by ensuring eye safety and supporting psychological focus.
OC-CO series is designed for the most discerning customers who demand nothing but the best. It provides unparalleled visual experiences that are sure to impress. So why settle for less when you can experience the ultimate in LED technology with our fine pixel OC-CO series?
Specifications
| Model | OC-CO P078 | OC-CO P093 | OC-CO P012 | OC-CO P015 | |||||
| Pixel configuration | COB 1R1G1B | COB 1R1G1B | COB 1R1G1B | COB 1R1G1B | |||||
| Pixel pitch | 0.7 mm | 0.9 mm | 1.2 mm | 1.5 mm | |||||
| Cabinet Resolution | 768x432P | 640x360P | 480x270P | 384x216P | |||||
| Cabinet Dimension (W×H×D) |
600*337.5*30mm | 600*337.5*30mm | 600*337.5*30mm | 600*337.5*30mm | |||||
| Unit Area | 0.2025 m² | 0.2025 m² | 0.2025 m² | 0.2025 m² | |||||
| Cabinet Weight (single power supply) |
4.2KG per panel | 4.2KG per panel | 4.2KG per panel | 4.2KG per panel | |||||
| Pixel Density | 1 638 400P/sq.m | 1 13777P/sq.m | 640000P/sq.m | 409600P/sq.m | |||||
| Surface Flatness | ≤0.1 mm | ≤0.1 mm | ≤0.1 mm | ≤0.1 mm | |||||
| Brightness | 600nits | 600nits | 600nits | 600nits | |||||
| Colour Temperature | 3000-10000 Adjustable | 3000-10000 Adjustable | 3000-10000 Adjustable | 3000-10000 Adjustable | |||||
| Viewing Angle (DEGREE) | H-160°, V-160° | H-160°, V-160° | H-160°, V-160° | H-160°, V-160° | |||||
| Brightness Uniformity | ≥97% | ≥97% | ≥97% | ≥97% | |||||
| Protection rate (front) | IP54 | IP54 | IP54 | IP54 | |||||
| Grayscale | 22 bit | 22 bit | 18 bit | 18 bit | |||||
| Connections | Hard connection | Hard connection | Hard connection | Hard connection | |||||
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 | |||||
| Max. Power Consumption | 460W/sq.m | 460W/sq.m | 460W/sq.m | 460W/sq.m | |||||
| Avg. Power Consumption | 100-300W/sq.m | 100-300W/sq.m | 100-300W/sq.m | 100-300W/sq.m | |||||
| Power Supply | AC100~240V (50/60Hz) | AC100~240V (50/60Hz) | AC100~240V (50/60Hz) | AC100~240V (50/60Hz) | |||||
| Power Configuration | Single/Dual Power Supply | Single/Dual Power Supply | Single/Dual Power Supply | Single/Dual Power Supply | |||||
| Drive Mode | PWM Driving | PWM Driving | PWM Driving | PWM Driving | |||||
| Frame Rate | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | |||||
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | |||||
| Lifetime(half brightness) | 100000hrs | 100000hrs | 100000hrs | 100000hrs | |||||
| Operation Temperature | -10 – 40 °C | -10 – 40 °C | -10 – 40 °C | -10 – 40 °C | |||||
| Storage Temperature | -20 – 60 °C | -20 – 60 °C | -20 – 60 °C | -20 – 60 °C | |||||
| Operation Humidity | 10 – 80% no condensation | 10 – 80% no condensation | 10 – 80% no condensation | 10 – 80% no condensation | |||||
| Storage Humidity | 10 – 80% no condensation | 10 – 80% no condensation | 10 – 80% no condensation | 10 – 80% no condensation | |||||
| Maintenance Method | front | front | front | front |
