OC-MM Series

Reliable Display

Introduction

OC-MM series products are characterized by light weight, anti-ultraviolet, waterproof, and RGB three-color full-color LED lamps. This series of products is the latest attempt of integrated design. It gets a wider 160-degree viewing angle from horizontal and vertical, showing an accurate picture. The high-brightness National Star SMD2727 patch lamp can fully meet the needs of outdoor applications. Excellent IC driver and control system are selected to ensure exquisite high-refresh and high-gray-scale display effects.

Custom front and rear opening modules save you maintenance time and labor costs. The raw materials carefully selected by Ocolour ensure the reliability, stability and service life of the products.

Key Features

  • Energy saving by using excellent IC driver and improved PCB design;
  • High uniformity and high contrast ratio;
  • Reliable design: Anti-UVmodule mask, anti-Oxidation module frame;
  • High brightness: 5000-7000nits;
  • High refreshing rate: 3840Hz;
  • Wide viewing angle: H:160°/ V:160°;
  • Various pitches: P10.416, P7.8125, P6.25 and P3.91;
  • Protection level: Front: IP65, suitable for working in different outdoor environments;
  • Wider operating temperature: -30°C to +55 °C;
  • Front/Rear Installation & Maintenance with hexagon wrench;
  • Long Lifespan:  more than 100000 hours;
  • Control method: synchronous or asynchronous.

Applications

  • Sports arenas: OC-MM series can be used in sports arenas to display scores, player stats, and other game-related information to spectators in a visually stunning way;
  • Transportation: OC-MM series can be used in airports, train stations, and other transportation hubs to display information about schedules, routes, and other important details in a clear and engaging way;
  • Corporate events: OC-MM series can be used in corporate events such as product launches or conferences to display information or promotional material in an eye-catching and visually stunning way;
  • Retail: OC-MM series can be used in storefront windows to showcase products or promotions in a visually appealing way without obstructing the view inside or outside the store;
  • Exhibition: OC-MM series can be used in exhibitions or trade shows to create an interactive and immersive environment for attendees. They can be used as part of a larger installation or as standalone displays.

Specifications

No Item OC-MM-P10.41 OC-MM-7.81 OC-MM-P6.25 OC-MM-P3.91
1 Led configuration SMD2727 SMD2727 SMD2727 SMD1921
2 Pixel pitch(mm) 10.416 7.8125 6.25 3.91
3 Module size(mm) 500×250 500×250 500×250 500×250
4 Module resolution(WxH) 48×24 64×32 80×40 128×64
5 Module composition(WxH) 2×4 2×4 2×4 2×4
6 Cabinet resolution(WxH) 96×96 128×128 160×160 256×256
7 Cabinet dimension(LxWxH,mm) 1000x1000x86 1000x1000x86 1000x1000x86 1000x1000x86
8 Cabinet area(sq.m) 1 1 1 1
9 Weight/sq.m 25 25 25 25
10 Pixel density(pixels/sq.m) 9216 16384 25600 65536
11 IP level IP65 IP65 IP65 IP65
12 Brightness(nits) 6000 6000 6000 6000
13 Color temperature(K) 3200 – 9300 3200 – 9300 3200 – 9300 3200 – 9300
14 Viewing angle(H/V) 160/160 160/160 160/160 160/160
15 Contrast ratio 6000:1 6000:1 6000:1 6000:1
16 Maximum power consumption(W/sq.m) 780 780 780 780
17 Average power consumption(W/sq.m) 100-390 100-390 100-390 100-390
18 Input voltage AC100~240V (50-60Hz) AC100~240V (50-60Hz) AC100~240V (50-60Hz) AC100~240V (50-60Hz)
19 Maintenance Front / Rear Access Front / Rear Access Front / Rear Access Front / Rear Access
20 Refreshing rate(Hz) 3840 3840 3840 3840
21 Frame rate Processing (Hz) 50 & 60 50 & 60 50 & 60 50 & 60
22 Operating temperature (°C) -30 ~ 55 -30 ~ 55 -30 ~ 55 -30 ~ 55
23 Storage temperature (°C) -40 ~ 60 -40 ~ 60 -40 ~ 60 -40 ~ 60
24 Operating humidity (RH) 10 – 90% 10 – 90% 10 – 90% 10 – 90%
25 Storage humidity (RH) 10 – 80% 10 – 80% 10 – 80% 10 – 80%
26 Lifespan of the led 100000hrs 100000hrs 100000hrs 100000hrs

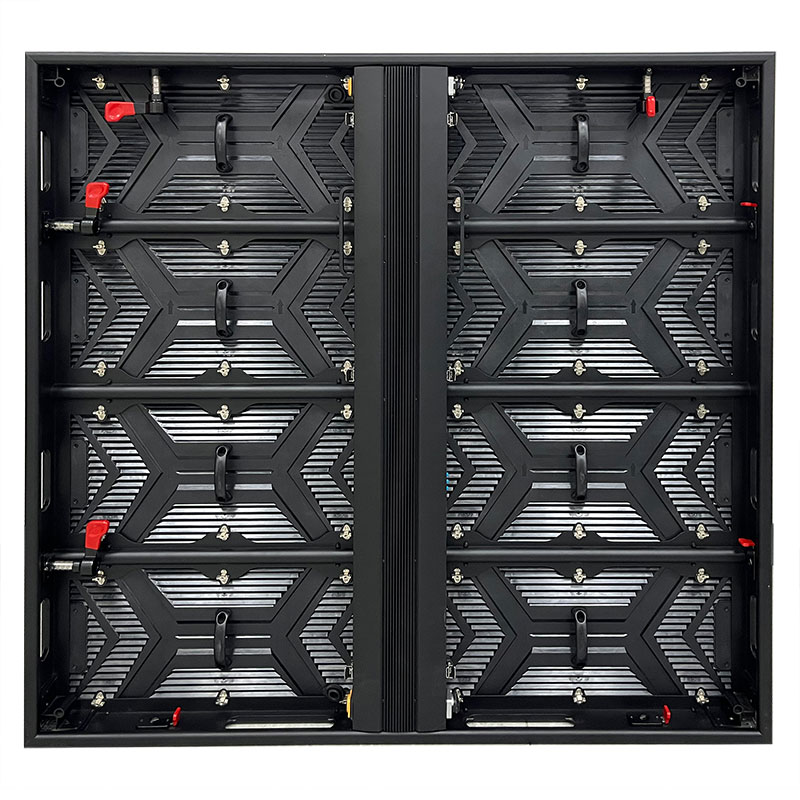

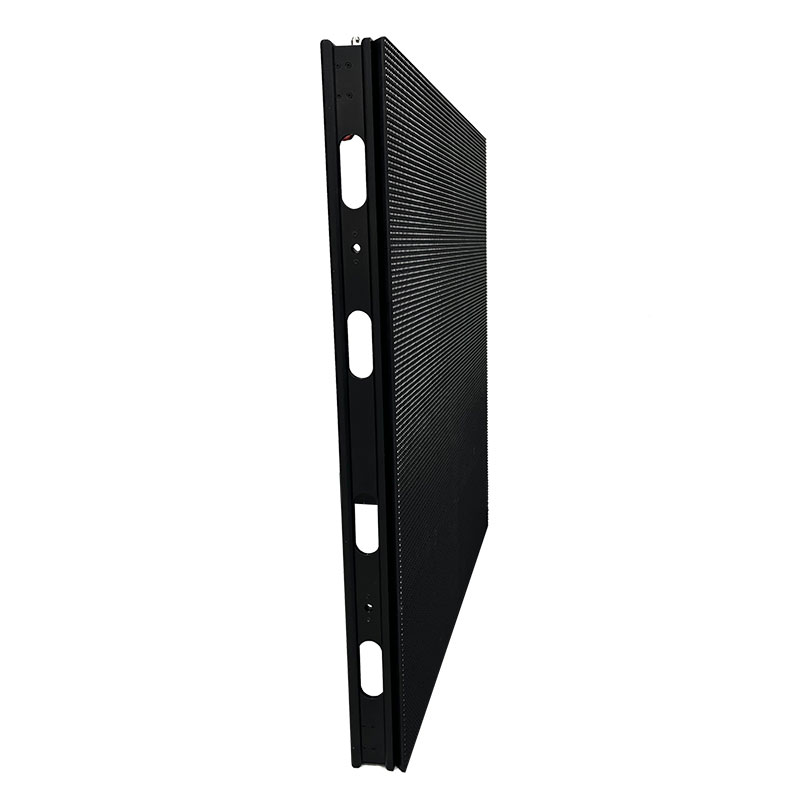

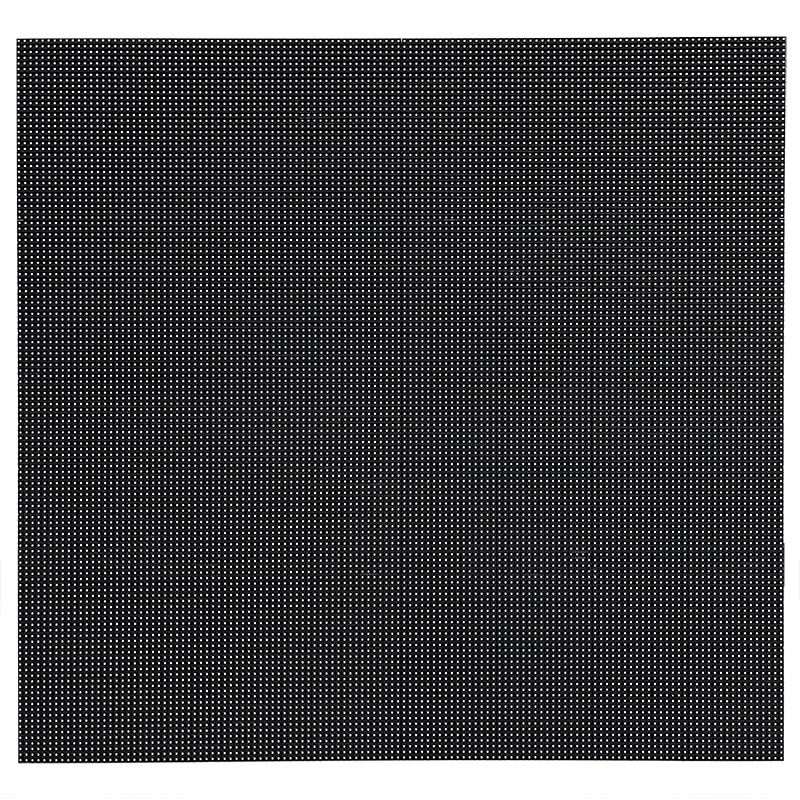

Product Images
