OC-CY Series
Cute Cube Display Makes Big Effects
Introduction

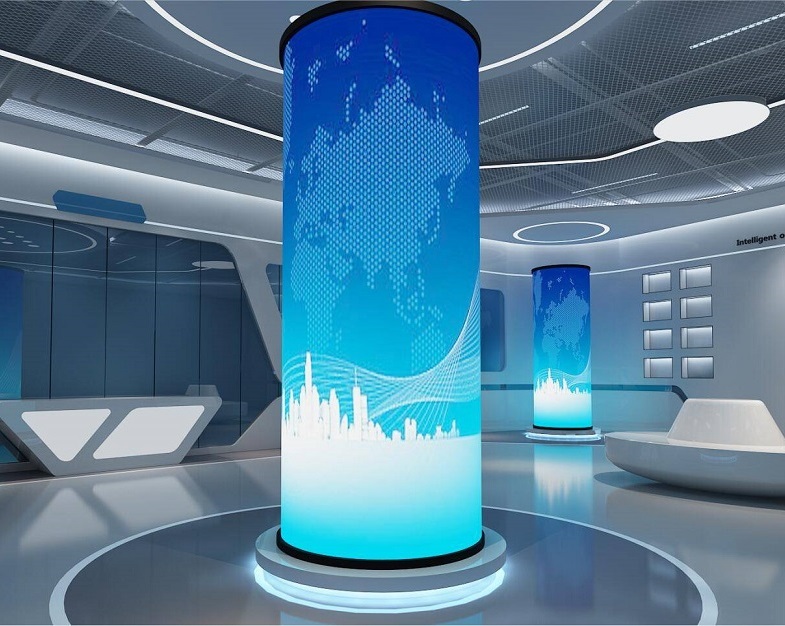

OC-CY comes from a totally different module–flexible module. By this new technology we can assemble curved screen with natural curve. And of course you can get the same viewing experience from 360-degree panoramic view. And you can decorate those pillar in a palace without any damage to itself.
Key Features
- Waterproof: we provide waterproof cabinet and module if you want;
- Customizable, although it is called OC-CY, you can choose the shape you want.
- Different pixel pitch can be choose 1.25/1.579/1.667/1.875/2;
- High-resolution of 3840HZ;
- Lightweight: each of them weights only 0.2kg.
Applications
- To OC-CY there is a nature advantage in advertising for drinks like coke, wine or liquor. As their appearance is almost the same witha cylinder. No one can refuse a glass of coke when they see a huge bottle of coke standing in front of them.
- Decorate the building in rounded rectangle. As a saying goes, golden corner, silver side and iron internal. An advertisement in the corner of a building match more than 10 in the side. The OC-CY can show an intact picture effect in the golden corner.
- Of course, flexible module can be used in are installations to create unique and interactive art installations.

- Corporate Events: OC-CB series can be used to display branding, messaging, and other information at corporate events such as conferences, product launches, and more.
There is almost unlimited possibility in flexible module. We are here waiting for those who want to excavate it.
Specifications
Physical parameter | Pixel configuration | SMD2020 | ||
Pixel pitch | 2.5mm | |||
Pixel martrix per panel | 96×48 pixels | |||
Pixel density | 160 000pixels/sq.m | |||
Module Dimensions | 320x160mm | |||
Panel material | iron | |||
Panel weight | none | |||
Module weight | 0.35kg/module | |||
Electronic parameter | Color grayscale | 14bit | ||
Gray Scale per Color | 8192 level | |||
Refresh rate | 3840Hz | |||
Driving Type | 1/32 scan | |||
Signal Transmission Distance | CAT5 cable:<100 m;Single mode fiber:<10 km | |||
Optical parameter | Brightness | 700nits | ||
Optimal Horizontal Viewing Angle | 160 degree | |||
Optimal Vertical Viewing Angle | 160 degree | |||
Electrical parameter | AC inout voltage | 110-220V± 10% | ||
AC Input Frequency | 50 or 60Hz | |||
AC Input Power Max Value | 800W/sq.m | |||
AC Input Power Ave Value | 400W/sq.m | |||
CircumstanceParameter | Storage Temperature | -20 to 55 C | ||
Working Temperature | 0 to 45 C | |||
IP rating | IP31 | |||
Storage Humidity (RH) | 10%~90% non -condensing | |||
Working humidity (RH) | 10%~95% non -condensing | |||
Lifetime Typical Value | 100000hrs on half brightness | |||
Installation Type | Panel installation type | Fix/Rental |
