OC-OD Series
Superior Cabinet Design For Quick Installation
Introduction
Whether you’re hosting a concert, festival, sporting event, or looking for a unique way to advertise your business, our OC-OD series is the perfect choice for outdoors. With its high-resolution display, easy setup, and weather-resistant design, you can be sure that your content will look great and make a lasting impression on your audience.
Key Features
- High-resolution display: high quality LED lamps, vivid color and high brightness to 8000 nits
- Compact cabinet design: ultra-light to 23KG/sqm, hard connection, double lock design quick and hassle-free setup.
- Easy maintenance: supporting front and rear maintenance.
- High IP level: Its high water-proof grade of IP65 for the front side and IP54 for the rear side also promise the stability of the screen wall in different weather environments.
- Flight case packing: for safe and easy transport, protecting the equipment from damage during shipping.
Applications
- Concerts and festivals: Use our display to showcase your lineup, share important event information, and promote your sponsors.
- Sporting events: Use our display to showcase live scores and stats, as well as advertisements from your sponsors.
- Trade shows and conventions: Use our display to showcase your products and services, and to attract potential customers to your booth.
- Corporate events: Use our display to showcase important information, such as upcoming events, new product launches, and company news.
Our OC-OD series is suitable for a wide range of events, such as outdoor concerts, sports events, festivals, and more. Its high brightness and clear image quality ensure maximum visibility and impact for your audience, even in direct sunlight. Plus, its quick and easy assembly and disassembly make it an ideal choice for temporary outdoor installations.
Specifications
| Item | OC-OD-P1.875 | OC-OD-P2.5 | OC-OD-P3.91 |
| Brightness | 5500nits | 5500nits | 5500nits |
| Led encapsulation | SMD1415 | SMD1415 | SMD1921 |
| Module size | 300 × 168.75 mm | 320 x 320 mm | 250 x 250mm |
| Module resolution | W 160 × H90 pixels | W 128 x H 128 pixels | W 128 x H 64 pixels |
| Piexel density | 284 096 pixels/sq.m | 160 000 pixels/sq.m | 65 536 pixels/sq.m |
| Pixel pitch | 1.875 mm | 2.5 mm | 3.9 mm |
| Minimum Viewing Distance | 1.875 m | 2.5 m | 3.9 m |
| Cabinet size | 1200 x 337.5 mm | 640 x 640 mm | 500×500 mm |
| Cabinet resolution | W640 x H180P | W256 x H256P | W256 x H256P |
| Cabinet weight | 25KG/sq.m | 25KG/sq.m | 25KG/sq.m |
| Max power consumption | 1200W/sq.m | 1200W/sq.m | 1200W/sq.m |
| Average power consumption | 200-500W/sq.m | 200-500W/sq.m | 200-500W/sq.m |
| Driving IC | ICN or FM series | ICN or FM series | ICN or FM series |
| Viewing Angle(DEGREE) | Viewing Angle : H-160; V-160 | Viewing Angle : H-160; V-160 | Viewing Angle : H-160; V-160 |
| Ingress Protection | Front: IP65; back: IP54 | Front: IP65; back: IP54 | Front: IP65; back: IP54 |
| Brightness Control | 256 level | 256 level | 256 level |
| Gray scale | 4096 level | 4096 level | 4096 level |
| Refresh frequency | 3840Hz | 3840Hz | 3840Hz |
| Cabinet material | Aluminum die-casting | Aluminum die-casting | Aluminum die-casting |
| Driving mode | 1/30 scan | 1/16 scan | 1/16 scan |
| Blind spot rate | ＜1/10000 | ＜1/10000 | ＜1/10000 |
| Lifetime at 50% brightness | 100,000 hours | 100,000 hours | 100,000 hours |
| Operation temperature | ﹣20 ℃ ～﹢55 ℃ | ﹣20 ℃ ～﹢55 ℃ | ﹣20 ℃ ～﹢55 ℃ |
| Operation humidity | 10％ ～ 90％ | 10％ ～ 90％ | 10％ ～ 90％ |
| Input power frequency | 50 or 60 Hertz | 50 or 60 Hertz | 50 or 60 Hertz |
| Input Voltage | 100-240VAC, typical value: 110VAC or 220VAC | 100-240VAC, typical value: 110VAC or 220VAC | 100-240VAC, typical value: 110VAC or 220VAC |

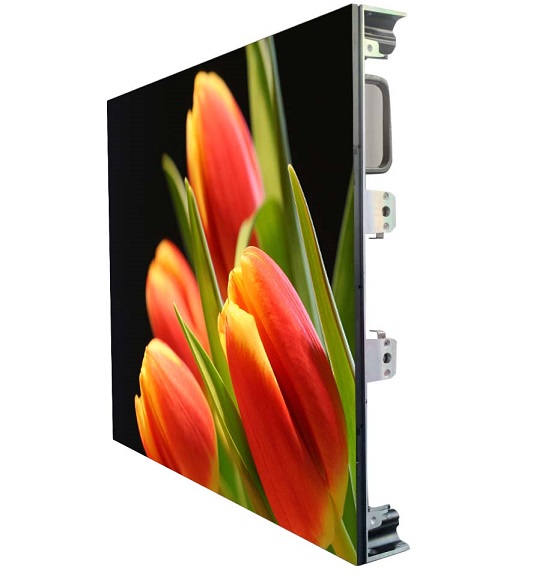

Product Images
