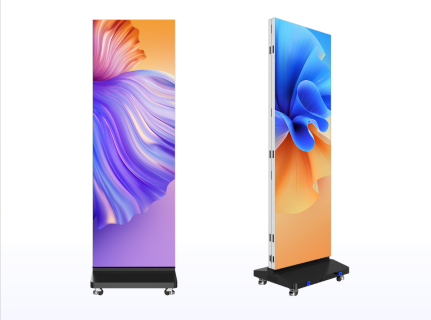

Triple-foldable LED Poster Screen
Tri-fold led poster
Tri-fold led poster
Discover the Triple-Foldable Double-Sided LED Poster Screen — an exclusive, patented solution designed to meet the evolving needs of modern businesses. This foldable LED display combines double-sided visibility, lightweight mobility, and a plug-and-play setup to offer a flexible and high-impact visual solution for various commercial settings. Whether fully unfolded as a large-format screen or used as a dual-sided digital poster, it adapts easily to retail spaces, trade shows, corporate events, and more.
Developed based on over 20 years of industry expertise, this product is the result of deep market research and real user feedback. In response to common challenges—such as complex installation, difficult content configuration, and bulky traditional displays—our R&D team created the Triple-Foldable LED Poster to be user-friendly, portable, and visually striking. Officially launched to the market in 2025, it has since received widespread praise for its innovative design and practical performance in the mobile LED display category.
Key features for our Tri-fold led poster

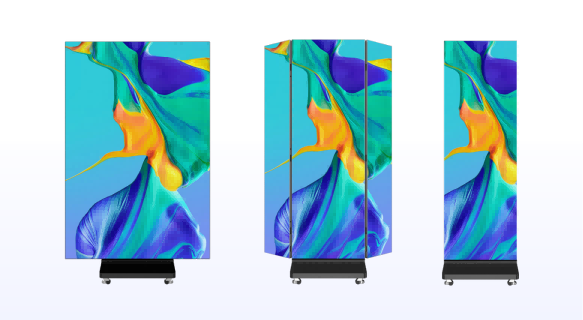

🔹 Unmatched Versatility for Any Display Scenario
The Triple-Foldable Double-Sided LED Poster Screen adapts to any setting. Fold it into a double-sided poster or unfold it into a large-format LED display, engaging audiences from multiple angles with ease.

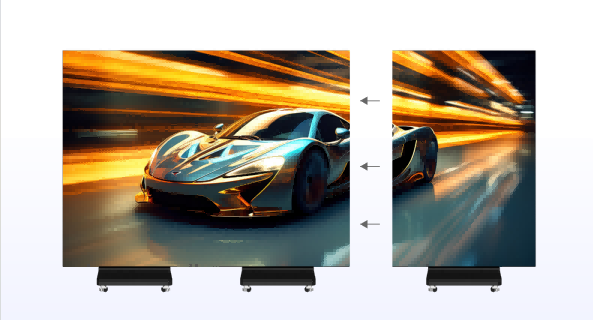

🔹 Scalability That Grows With Your Vision
Designed for true scalability, this display connects seamlessly into multi-screen video walls with no visible gaps. Its GOB LED technology protects against scratches, moisture, and impact, ensuring reliable performance in both permanent installs and high-frequency event use.
🔹 Mobility That Keeps Your Business Moving
With an ultra-light aluminum frame, 50mm slim profile, and swivel wheels, this screen is easy to move, position, and deploy. Perfect for retail stores, exhibitions, and corporate events where fast setup and flexibility matter.
🔹 Easy Plug & Play Setup
No tools or technicians required. Simply power on and start displaying content instantly—perfect for quick deployments and fast-changing environments.
🔹 Wireless App Control
Manage your content remotely via a user-friendly mobile app. Upload videos, images, or presentations with just one click for total flexibility.
🔹 Quick-Lock for Fast Deployment
Intuitive quick-lock system allows even first-time users to fold and unfold the screen in seconds, saving time and effort during setup.
🔹 Synchronous & Asynchronous Playback
Supports real-time streaming and preloaded content, making it ideal for both live events and offline presentations.

Applications for our Tri-fold led poster
🏬 Retail & Shopping Malls
Attract customers with eye-catching promotions and dynamic advertising. The double-sided LED poster maximizes visibility in high-traffic areas.
🎪 Exhibitions & Trade Shows
Make your booth stand out with a large-format LED wall or multiple seamlessly connected screens. Quick setup saves time, while mobility ensures stress-free logistics.
🏢 Corporate & Conferences
Perfect for presentations, product launches, and meetings. Supports synchronous playback for live streams and asynchronous content for scheduled displays.
🏨 Hospitality & Hotels
Create memorable guest experiences in lobbies, event halls, and showrooms. Display welcome messages, promotional videos, or live event feeds.
🎤 Events & Live Performances
From concerts and stage backdrops to pop-up activations, the screen’s mobility and durability make it a reliable choice for high-energy environments.
Specifications for Tri-fold led poster
Name | Item | OC-TF-P2.5 | OC-TF-P1.86 | OC-TF-P1.53 | OC-TF-P1.25 |
Display module parameters |
Pixel pitch | 2.5mm | 1.86mm | 1.538mm | 1.25mm |
Pixel configuration | SMD 1R1G1B | SMD 1R1G1B | SMD 1R1G1B | SMD 1R1G1B | |
Module resolution | W128*H64 dots | W172*H86 dots | W204*H104 dots | W256*H128 dots | |
Module Size | W320*H160mm | W320*H160mm | W320*H160mm | W320*H160mm | |
Protection technology | GOB | GOB | GOB | GOB | |
Module weight | 0.55kg | 0.55kg | 0.55kg | 0.55kg | |
Whole machine composition |
Module arrangement W*H | W4*H12 pcs | W4*H12 pcs | W4*H12 pcs | W4*H12 pcs |
Single sided display resolution W * H | W512*H768 dots | W688*H1032 dots | W832*H1248 dots | W1024*H1536 dots | |
Dual sided display resolution W * H | W256*H768 dots | W344*H1032 dots | W416*H1248 dots | W512*H1536 dots | |

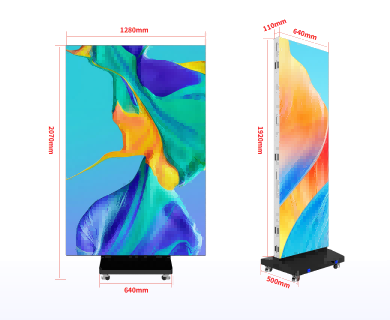

Single sided display size | 1280*1920mm | 1280*1920mm | 1280*1920mm | 1280*1920mm | |
Double sided display size | 640*1920mm | 640*1920mm | 640*1920mm | 640*1920mm | |
Single sided appearance dimensions | 1280*2070mm | 1280*2070mm | 1280*2070mm | 1280*2070mm | |
Double sided appearance dimensions | 640*2070mm | 640*2070mm | 640*2070mm | 640*2070mm | |
Gross weight of the machine | 78kg | 78kg | 78kg | 78kg | |
Optical parameters |
Flatness tolerance | 0.5mm | 0.5mm | 0.5mm | 0.5mm |
White balanced brightness | 600 nits | 650 nits | 700 nits | 750 nits | |
Grayscale | 14-16bit adjustable | 14-16bit adjustable | 14-16bit adjustable | 14-16bit adjustable | |
Color temperature | 3200-9000 adjustable | 3200-9000 adjustable | 3200-9000 adjustable | 3200-9000 adjustable | |
Best visual distance | 3-20M | 3-20M | 3-20M | 3-20M | |
Perspective (horizontal) | 160° | 160° | 160° | 160° | |
Perspective (vertical) | 160° | 160° | 160° | 160° | |
Tolerance of center to center distance of luminous point |
≤3% | ≤3% | ≤3% | ≤3% | |
Luminance uniformity | ≥95 | ≥95 | ≥95 | ≥95 | |
Chromaticity uniformity | ±0.003Cx,Cy | ±0.003Cx,Cy | ±0.003Cx,Cy | ±0.003Cx,Cy | |
Contrast ratio | 8000:1 | 8000:1 | 8000:1 | 8000:1 | |
Power on requirements |
Power supply requirements | 100-240V | 100-240V | 100-240V | 100-240V |
Peak power consumption | 850W | 900W | 1200W | 1600W | |
Average Power | 220W | 300W | 400W | 565W | |
Communication parameters |
Synchronous/Asynchronous | support | |||

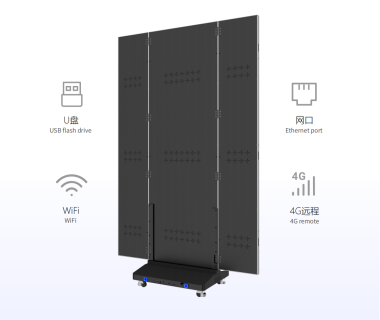

Communication method | APP / USB Drive / Ethernet Port / 4G Remote Access via APP | ||||
Interface | JS485 ×1 / Wi-Fi ×1 / USB Drive ×1 / HDMI ×2 | ||||
Speaker | Is there a built-in speaker | If yes, 50*12mm*2PCS | |||
Audio Interface | 3.5mm audio jack / Supports external amplifier | ||||
Performance processing |
Drive mode | Constant current drive | |||
Frame Frequency | 60Hz | ||||
Refresh rate | ≥3840Hz | ||||
Using parameters |
Typical lifespan values | 50000H | |||
Working temperature range | -40—50℃ | ||||
Operating humidity range | 10-80% non-condensing | ||||
Storage Temperature Range | -50—50RH | ||||
Storage humidity range | 10–85% RH, non-condensing |
